Fire Sample Reports

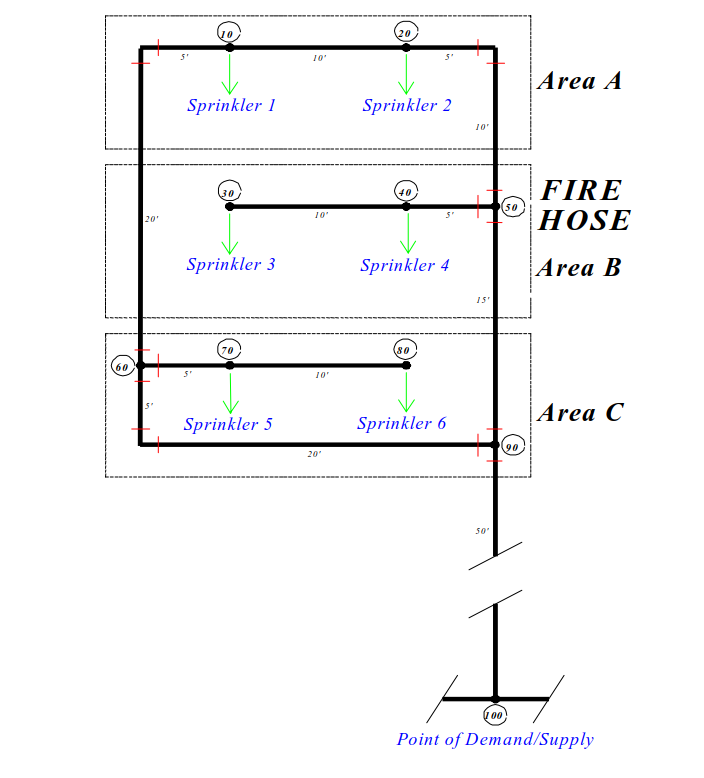

The diagram below shows the sprinkler system used in the Sample
project included with your installation of Fire, from which the reports on this page were generated.

General Project Data

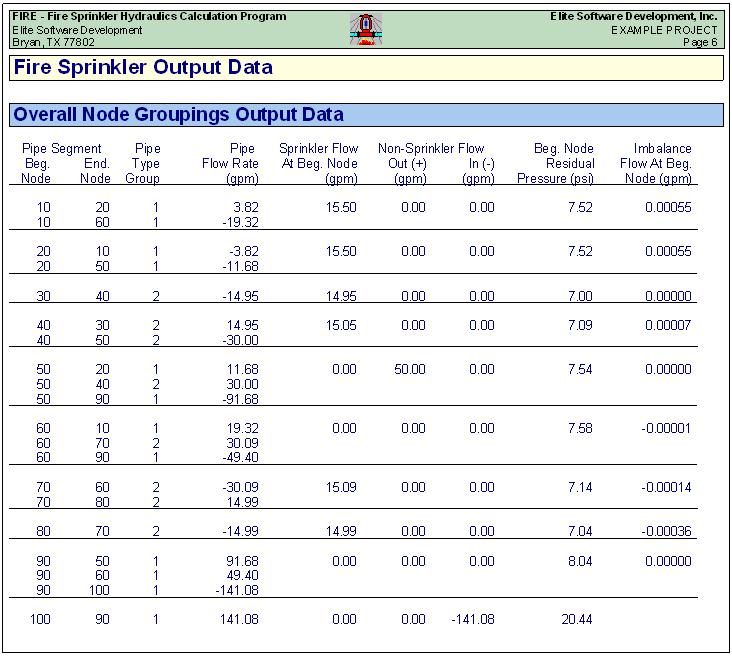

Overall Node Groupings Output

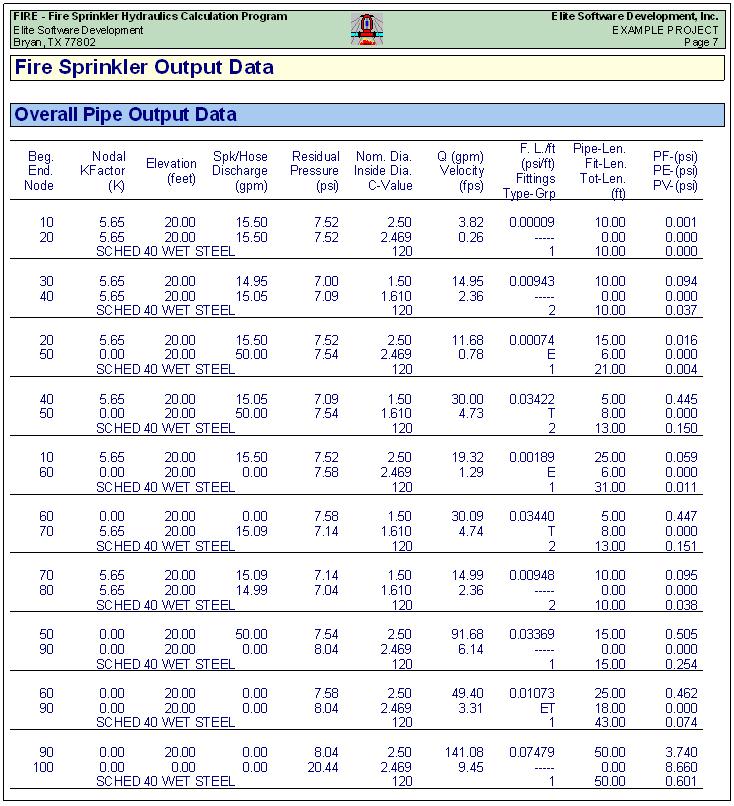

Overall Pipe Output Data

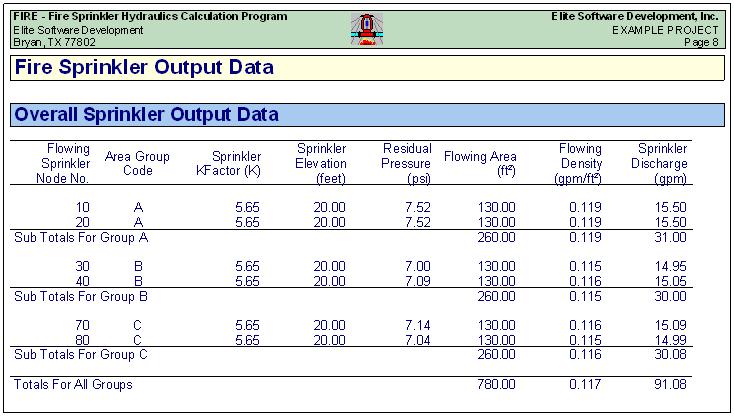

Overall Sprinkler Output


Sprinkler Output Summary


Hydraulic Supply/Demand Graph
